1.参考标准：QC/T 1037
2.温度等级：-40℃-125℃
3.额定电压：AC 600V/DC 900V
4.导体：绞合裸铜丝
5.绝缘：交联聚乙烯 护套:交联聚乙烯
6.环保要求：RoHS/REACH

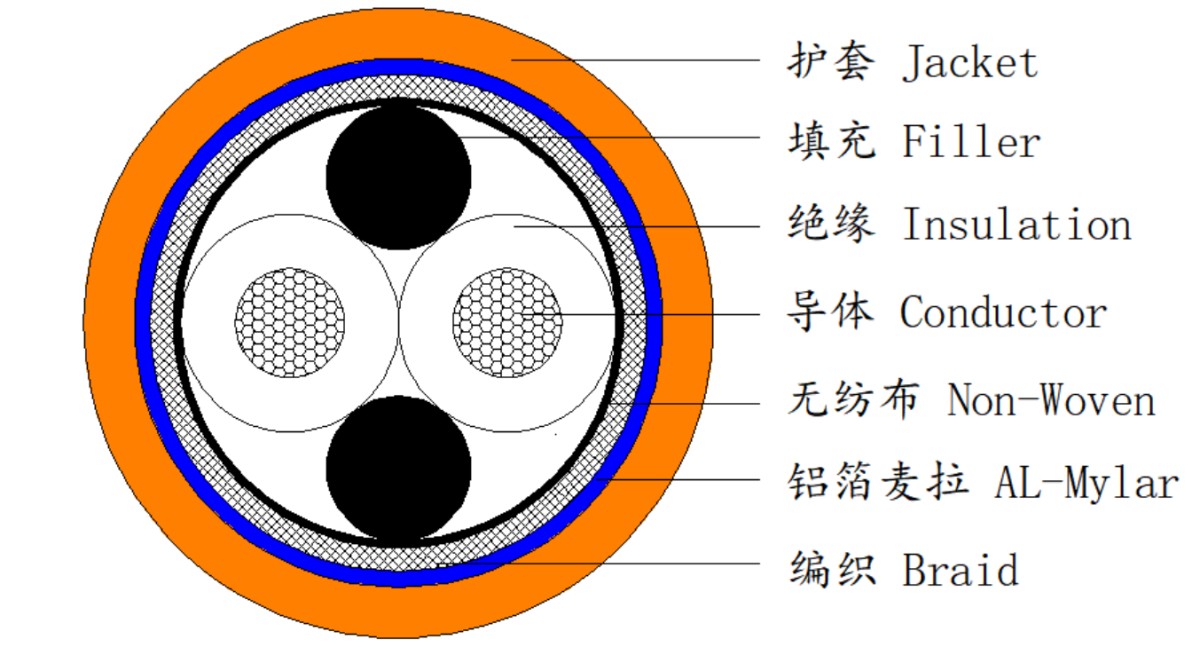

7.用途：新能源多芯屏蔽高压电缆
| 型号 | AC 600 V/DC 900V多芯屏蔽高压电缆 |
| EVP | 芯数 | 截面mm² | 标准 | 导体外径 | 绝缘厚度 | 绝缘外径 | 屏蔽 | 护套厚度 | 护套外径 |
| （mm）max | 标称(mm) | 最小(mm) | 最小(mm) | 最大(mm) | 编织单支最大直径（mm） | 标称(mm) | 最小(mm) | 最小(mm) | 最大(mm) |
| 2× | 1.5 | 30/0.254 | 1.7 | 0.3 | 0.24 | 2.2 | 2.4 | 0.16 | 1.2 | 0.76 | 7.5 | 8.5 |
| 3× | 1.7 | 0.3 | 0.24 | 2.2 | 2.4 | 0.16 | 1.2 | 0.76 | 8.5 | 9.1 |
| 4× | 1.7 | 0.3 | 0.24 | 2.2 | 2.4 | 0.16 | 1.2 | 0.76 | 9.2 | 9.7 |
| 5× | 1.7 | 0.3 | 0.24 | 2.2 | 2.4 | 0.16 | 1.2 | 0.76 | 9.7 | 10.3 |
| 2× | 2.5 | 50/0.254 | 2.2 | 0.35 | 0.28 | 2.7 | 3.0 | 0.16 | 1.2 | 0.76 | 9.3 | 9.9 |
| 3× | 2.2 | 0.35 | 0.28 | 2.7 | 3.0 | 0.16 | 1.2 | 0.76 | 9.8 | 10.4 |
| 4× | 2.2 | 0.35 | 0.28 | 2.7 | 3.0 | 0.16 | 1.2 | 0.76 | 10.5 | 11.1 |
| 5× | 2.2 | 0.35 | 0.28 | 2.7 | 3.0 | 0.16 | 1.2 | 0.76 | 11.5 | 12.1 |
| 2× | 4 | 56/0.30 | 2.8 | 0.40 | 0.32 | 3.4 | 3.7 | 0.16 | 1.2 | 0.76 | 10.7 | 11.3 |
| 3× | 2.8 | 0.40 | 0.32 | 3.4 | 3.7 | 0.16 | 1.2 | 0.76 | 11.5 | 12.1 |
| 4× | 2.8 | 0.40 | 0.32 | 3.4 | 3.7 | 0.21 | 1.4 | 0.82 | 12.7 | 13.3 |
| 5× | 2.8 | 0.40 | 0.32 | 3.4 | 3.7 | 0.21 | 1.5 | 0.9 | 13.9 | 14.5 |
| 2× | 6 | 84/0.30 | 3.4 | 0.40 | 0.32 | 4.0 | 4.3 | 0.16 | 1.4 | 0.82 | 11.2 | 12.8 |
| 3× | 3.4 | 0.40 | 0.32 | 4.0 | 4.3 | 0.21 | 1.5 | 0.9 | 13.5 | 14.1 |
| 4× | 3.4 | 0.40 | 0.32 | 4.0 | 4.3 | 0.21 | 1.5 | 0.9 | 14.5 | 15.1 |
| 5× | 3.4 | 0.40 | 0.32 | 4.0 | 4.3 | 0.21 | 1.5 | 0.9 | 15.7 | 16.3 |
